Modco
Modco Parts and Connectors
$32.31 each
Ships by UPS or FedEx Ground. Shipping is calculated at checkout from the package weight and your address.
Replacement and expansion parts for the Modco modular frame system: pin, clamp and angle connectors, louver and curve connectors, corner posts, cover profiles, feet and door hardware. Use them to repair a booth or to join extra Modco frames into new layouts.
- Graphic printing available
- Digital proof before printing
- Templates for every size
- Help from a real person
Replacement and expansion parts for the Modco modular frame system: pin, clamp and angle connectors, louver and curve connectors, corner posts, cover profiles, feet and door hardware. Use them to repair a booth or to join extra Modco frames into new layouts.
- Pin connectors join frames; clamp connectors join two frames (at least two per connecting level)
- 90°, 180°, T-shape, flexible and curve connectors for different layouts
- Corner posts and side cover profiles in seven lengths from 310 to 2480 mm
- Feet, door handle, frame protectors and LED spotlight adaptor
- Most parts have quantity pricing
Ships in about 2 business days after proof approval.
| Option | Item code | Price (qty 1) |
|---|---|---|

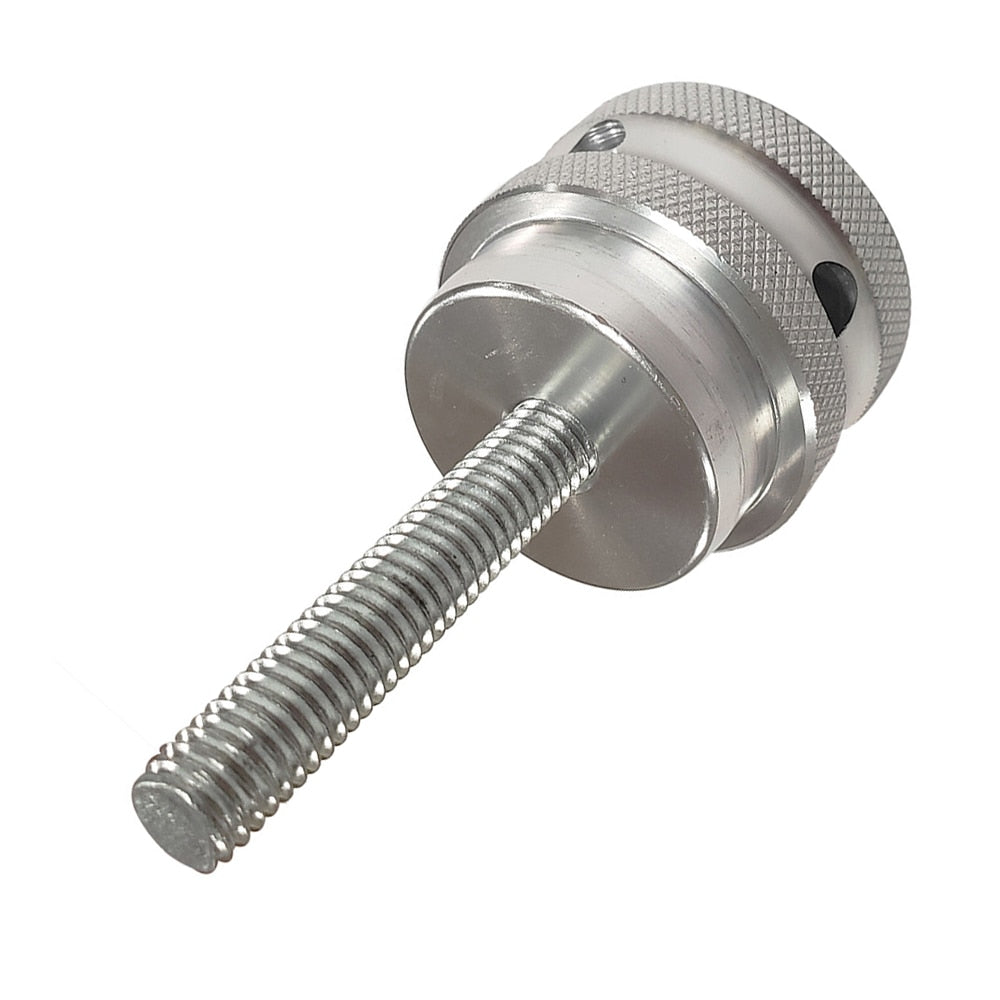

| Pin connector, 40 mm | MOD-PC | $32.31 |
| Long pin connector, 50 mm | MOD-LPC | $32.31 |
| Pin connector for corner post, 56 mm | MOD-CNR-PC | $32.31 |
| Door pin connector, 85 mm | MOD-PCDOOR | $32.31 |
| Door pin connector (type A) | MOD-PCWP-A | $32.31 |
| Pin connector for curved cover profile | MOD-PCWP-B | $32.31 |
| Pin connector, 100 mm (for monitor mounts and shelves) | MOD-PCTV | $32.31 |
| 90° connector | MOD-90D-CON | $32.31 |
| L-shaped 90° connector | MOD-SM90D-CON | $50.77 |
| 90° top ceiling connector | MOD-90TC-CON | $41.54 |
| 90° frame stack connector | MOD-90FS-CON | $70.77 |
| 90° frame connector, assembled | MOD-90D-FRM-CON | $20.00 |
| T-shape 3-way 90° connector | MOD-T-90DCON | $64.62 |
| 180° connector | MOD-180D-CON | $43.08 |
| 180° short connector (2 pips) | MOD-SM180D-CON | $40.00 |
| 180° strengthening connector | MOD-180D-STR-CON | $86.15 |
| Curve 180° connector, left | MOD-CRV-180DCL | $64.62 |
| Curve 180° connector, right | MOD-CRV-180DCR | $64.62 |
| Flexible connector, 0-180° | MOD-FLEX-CON | $73.85 |
| Clamp connector | MOD-CLA-CON | $40.00 |
| Clamp connector, extended thread | MOD-CLA-CON-B | $38.46 |
| Universal clamp connector, plastic | MOD-UPCLA-CON | $23.08 |
| Door clamp connector, 180° | MOD-DCC-180D | $55.38 |
| Panel fixing connector B | MOD-PNL-CON-B | $30.77 |
| Panel fixing connector, tool-free | MOD-PNL-CON-C | $24.62 |
| Louver-to-frame ceiling connector, 90° | MOD-PNL-CON-LV | $63.08 |
| Louver-to-frame connector, 90° (left/right pair) | MOD-SM90D-LV-CON | $80.00 |
| Louver-to-frame connector, 180° | MOD-180D-LV-CON | $32.31 |
| Louver-to-louver connector, 90° | MOD-LV90D-CON | $30.77 |
| Louver-to-louver connector, 180° | MOD-LV180D-CON | $21.54 |
| Spotlight connector | MOD-SPOT-CON | $36.92 |
| LED spotlight adaptor | MOD-ADPT-LED | $73.85 |
| Clip connector for cover profile | MOD-CC | $13.85 |
| Cover profile bar, flat, 3100 mm (10.2') | MOD-CP-3100 | $60.00 |
| Curved cover profile, 774 mm (R1/4) | MOD-CP-774 | $107.69 |
| Corner post side cover profile, 310 mm (1.0') | MOD-CP-MTX-310 | $6.89 |
| Corner post side cover profile, 496 mm (1.6') | MOD-CP-MTX-496 | $10.77 |
| Corner post side cover profile, 992 mm (3.3') | MOD-CP-MTX-992 | $20.00 |
| Corner post side cover profile, 1488 mm (4.9') | MOD-CP-MTX-1488 | $27.69 |
| Corner post side cover profile, 1984 mm (6.5') | MOD-CP-MTX-1984 | $38.46 |
| Corner post side cover profile, 2418 mm (7.9') | MOD-CP-MTX-2418 | $47.69 |
| Corner post side cover profile, 2480 mm (8.1') | MOD-CP-MTX-2480 | $49.23 |
| Corner post 62 x 62 mm, 310 mm (1.0') | MOD-CNR-A-310 | $12.31 |
| Corner post 62 x 62 mm, 496 mm (1.6') | MOD-CNR-A-496 | $24.62 |
| Corner post 62 x 62 mm, 992 mm (3.3') | MOD-CNR-A-992 | $36.92 |
| Corner post 62 x 62 mm, 1488 mm (4.9') | MOD-CNR-A-1488 | $55.38 |
| Corner post 62 x 62 mm, 1984 mm (6.5') | MOD-CNR-A-1984 | $75.38 |
| Corner post 62 x 62 mm, 2418 mm (7.9') | MOD-CNR-A-2418 | $90.77 |
| Corner post 62 x 62 mm, 2480 mm (8.1') | MOD-CNR-A-2480 | $92.31 |
| Corner post end caps | MOD-CNR-CAP-A | $13.85 |
| Corner post spacer, 62 mm | MOD-CNR-3D | $27.69 |
| Extrusion profile with holes, 3.6 m (11.8') uncut | MOD-EXT-3.6m | $216.92 |
| Frame protector | MOD-FP | $12.31 |
| Screw nut, 28 mm | MOD-SN28mm | $27.69 |
| Door handle | MOD-DOOR-LHW-1 | $155.38 |
| Metal base foot for 992 mm frames, double-sided | MOD-BSFT-DBL | $266.15 |
| Square foot, double-sided, 437 x 310 mm | MOD-SQFT-DBL | $90.77 |
We send a graphic template for the exact size you order. Place your artwork on it and send it to us, or send your logo and we'll lay it out. You approve a digital proof before anything prints.
Print files: PDF, AI or EPS, CMYK, fonts outlined, images at full size.
